Cocoa Bean Grinding Machine

By: MILL 2022-06-21
Cocoa Bean Grinding Machine Description:

The cocoa bean grinding machine is suitable for milling materials with high fat, oil or sugar, like cocoa beans, coffee beans, carob pods.. etc. The grinding machine product particle size uniformity, fineness up to 80-320 mesh.

Cocoa Bean Grinding Machine-mier

The grinding machine is compact in design, reasonable in structure, and equipped with grading mechanism. The grinding and grading can be carried out simultaneously to reduce energy consumption.

Grinding Machine Features:

1. The size of granules can be achieved by changing of the screen.
2. The grinding machine has the features of easy structure, solid, stable running and good efficiency.
3. The grinding machine is made of stainless steel, with smooth inside walls to avoid powder accumulation on the inside walls.

Grinding Machine Video:

Learn more about YouTube’s cocoa bean grinding machine

Application:

Cocoa Bean Grinding Machine-mier

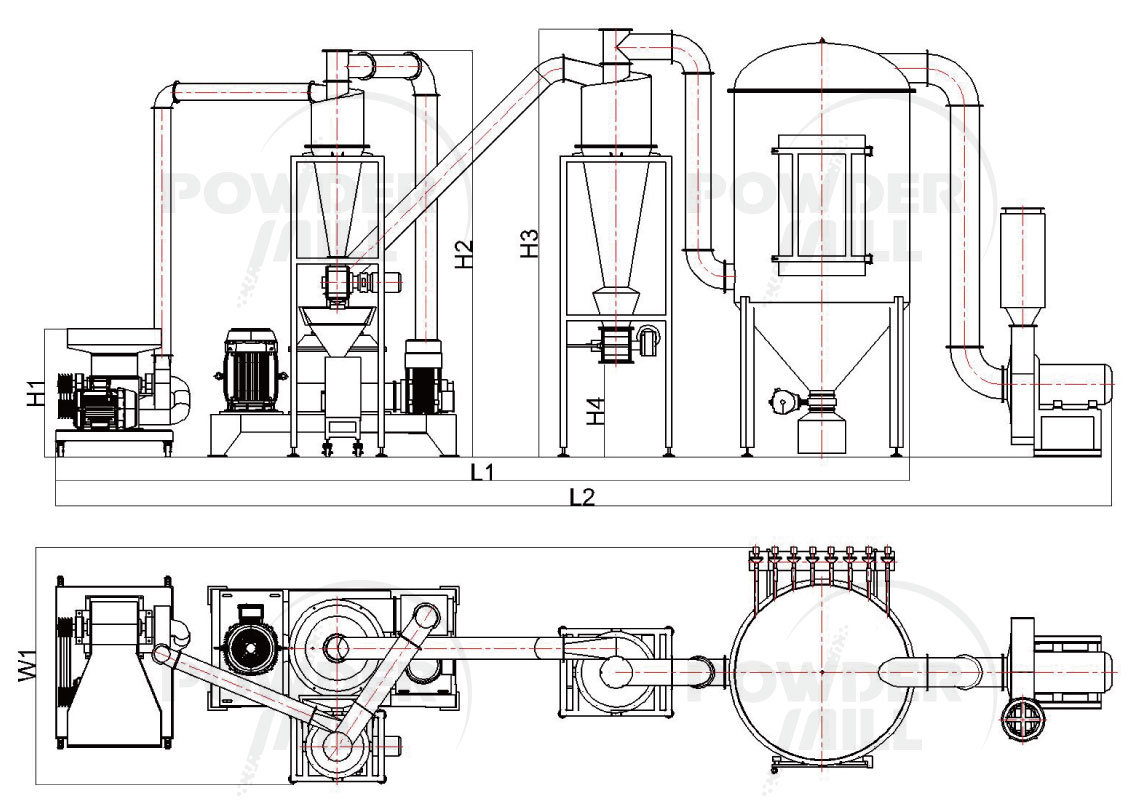

Dimension:

Cocoa Bean Grinding Machine-mier

Technical Parameter:
Model Main Structural Dimensions(mm) Capacity Input Particle Size Output Particle Size Speed Machine weight Total power
L1 L2 H1 H2 H3 H4 W1 Kg/H mm mesh rpm Kg KW
MR-350+20 5487 6810 859 2743 2862 650 1574 15-200 50 60-320 8600 1800 28.5
MR-450+30 6370 7991 1056 3472 3352 650 1783 50-600 50 60-320 6700 3600 61
MR-550+60 7288 9010 1096 3472 3652 800 2025 100-1000 50 60-320 5250 5300 106
MR-550+80 8410 10372 1096 3472 4015 800 2199 120-1500 50 60-320 4850 7500 145
Our company can be customized according to the user’s special requirements.
